Your Professional Titanium Bars Supplier
Ruihang Group mainly produces Titanium and Titanium Alloy products with the complete industry chain,including smelting,forging, straightening,rolling,surface treating,testing process.We are a technology and innovation enterprise that integrates R&D, production and sales into one integrated system.
Baoji Ruihang Elaborate Materials Technology Co., Ltd. was established in 2013, with a registered capital of 20 million RMB. Shaanxi Baoyuan Special Materials Technology Co., Ltd. is one of the Group's holding subsidiaries. Founded in 2019, it has a registered capital of 30 million RMB.Shaanxi Ruihang Elaborate Materials I/E Co., Ltd. is also a holding subsidiary of the Group, which is responsible for the Group's import and export business.

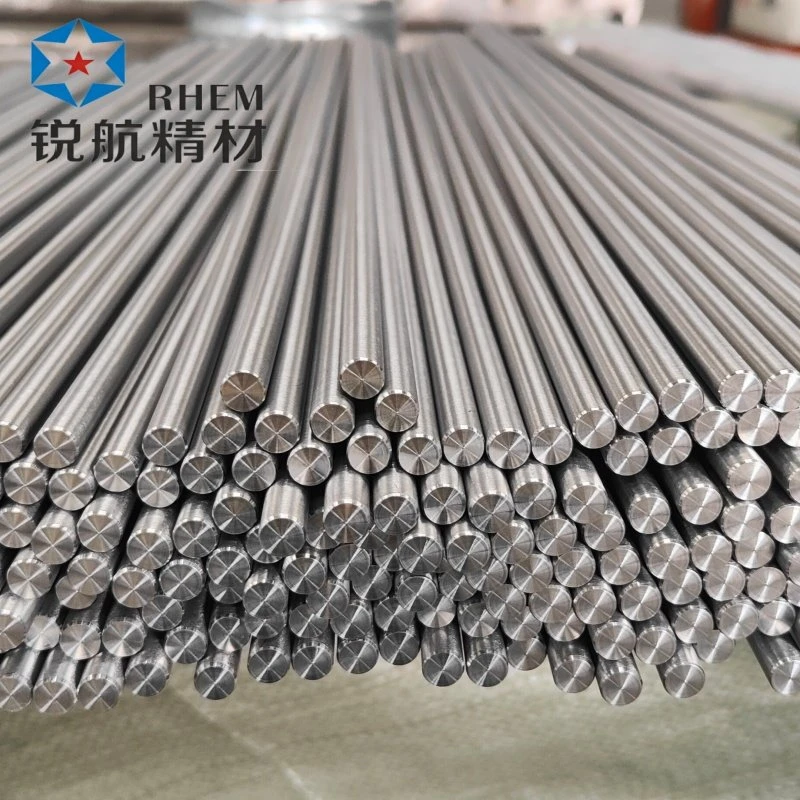

Supply titanium round bars, titanium square bars, titanium flat bars and titanium hexagonal bars with sufficient stock available in our workshops.
Specifications
|
Grade |
Gr1, Gr2, Gr3, Gr4, Gr5(Ti-6Al-4V), Gr6(Ti-5Al-2. 5Sn), |
|
Standards |
ASTM B348; ASTM F67; ASTM F136; AMS 4928; ASTM F1295; ASTM F1713; ISO 5832-2; ISO 5832-3 |
|
Size |
Round Bar Size: Dia 3.0 – 600mm*≤6000mm(Customization is acceptable) Square Bar Size: Width: 55-100mm Thickness: 2-300mm(Customization is acceptable) Flat Bar Size: Width: 10-300mm Thickness: 2-300mm*≤6000mm(Customization is acceptable) Hex Bar Size: Dia 3.0 – 600mm *≤6000mm(Customization is acceptable) |
|
Technical |
Hot Rolling |
|
Condition |
Annealed |
|
Supply Status |
R M Y |
|
Shape |
Ti Round Bar，Ti Square Bar ,Ti Flat Bar, Ti Hexagonal Bar |
|
Tolerance |
H5~H13,H6~H13 |
Features of Titanium Bar & Rod
Titanium bars and rods are renowned for their exceptional qualities, making them a preferred choice in diverse industries:
Strength-to-Weight Ratio: Titanium bars and rods offer a remarkable strength-to-weight ratio, making them ideal for applications where both strength and low weight are essential.
Corrosion Resistance: Titanium is inherently resistant to corrosion, especially against saltwater, chlorides, and various industrial chemicals, ensuring durability in harsh environments.
Biocompatibility: Due to its non-toxic nature, titanium is highly biocompatible, making it a top choice for medical implants and dental procedures, where safety and compatibility are paramount.
High-Temperature Tolerance: Titanium maintains its strength in elevated temperatures, making it suitable for aerospace and industrial applications exposed to extreme heat.
Versatility: Available in various grades, titanium bars and rods can be tailored to specific uses, from aerospace components requiring exceptional strength to intricate jewelry designs that demand both durability and aesthetic appeal.
Ductility: Despite its strength, titanium is also ductile, allowing it to be drawn or stretched without breaking, facilitating intricate machining and fabrication processes.
Low Thermal Expansion: Titanium exhibits a lower rate of thermal expansion compared to many other metals, ensuring stability under temperature fluctuations and contributing to its reliability.
Titanium Bar & Rod Grades
|
Grade |
Key Characteristics |
Common Applications |
|
Grade 1 |
Optimum ductility, high corrosion resistance |
Chemical processing, marine |
|
Grade 2 |
Good strength, high corrosion resistance |
Aerospace, architecture |
|
Grade 3 |
High strength, corrosion resistant |
Industrial, medical |
|
Grade 4 |
Highest purity, superior corrosion resistance |
Medical, aerospace |
|
Grade 5 (Ti-6Al-4V) |
Exceptional strength, heat resistance |
Aerospace, biomedical implants |
Professional Titanium Bar Production Process
Raw Material Selection: Start with carefully chosen high-grade titanium ore or sponge to ensure the raw material’s purity and quality.
Melting: Utilize a vacuum arc furnace to melt the raw titanium, resulting in a homogeneous ingot.
Forging & Rolling: Heat the ingot and employ forging or rolling techniques to reduce its size and shape it into the desired bar or rod profile.
Heat Treatment: Refine the microstructure and optimize the mechanical properties of the titanium through controlled heat treatment processes.
Straightening & Finishing: Straighten the bar or rod and subject it to various finishing processes like turning, grinding, or polishing to achieve the specified surface finish.
Quality Inspection: Thoroughly test each titanium bar and rod, including ultrasonic, visual, and dimensional checks, to ensure they meet the required standards.
Packaging & Dispatch: Once approved, securely package the bars and rods for dispatch to be used in diverse applications across industries.
Chemical components as below
|
Grade 7 |
N |
C |
H |
Fe |
O |
Al |
V |
Pa |
Mo |
Ni |
Ti |
|
0.03 |
0.08 |
0.015 |
0.30 |
0.25 |
/ |
/ |
0.12~0.25 |
/ |
/ |
balance |
Mechanical Property
|
Grade 7 |
Tensile strength(min) |
Yeild strength(min) |
Elongation(%) |
||
|
Ksi |
MPa |
Ksi |
MPa |
20 |
|
|
50 |
345 |
40 |
275 |
||
Available Sizes: Ranging from 6.0mm up to 120mm in diameter.
Available Grades: CP Grades 1, 2, 3, 4, 6AL-4V , 6-4 Eli.
Specifications on Offer: AMS-4928, 4930, 4965, 4967, MIL-T-9047, AMS-T-9047, ASTM-F-367, AMS-4975, 4978, AMS-4926, 4966.
Surface Finishes: Options include black oxide, pickling, and sandblasting.
Bar Shape: Titanium square bar, round bar, and hexagonal bar.
Applications: From Medical to Industrial and Aerospace sectors.
Different Forms of Titanium Bar & Rod
Round Bar: Round bars are perfect for machining and are widely used in industries such as aerospace and medical. Their cylindrical shape provides versatility for various applications.
Square Bar: Square bars are chosen for their uniformity and ease of fabrication. They are ideal for constructing frames and structural components where consistency is crucial.
Flat Bar: Flat bars offer a broader surface area and are commonly used in applications like blade manufacture or as structural components where a wider profile is required.
Hexagonal Bar: Hexagonal bars are favored for their unique geometry, making them an excellent choice for fasteners and decorative elements. Their hexagonal shape provides added strength and a distinctive look.
Authorized Certificate
FAQ
As one of the leading titanium bars manufacturers and suppliers in China, we warmly welcome you to buy high-grade titanium bars for sale here and get quotation from our factory. For price consultation, contact us.
