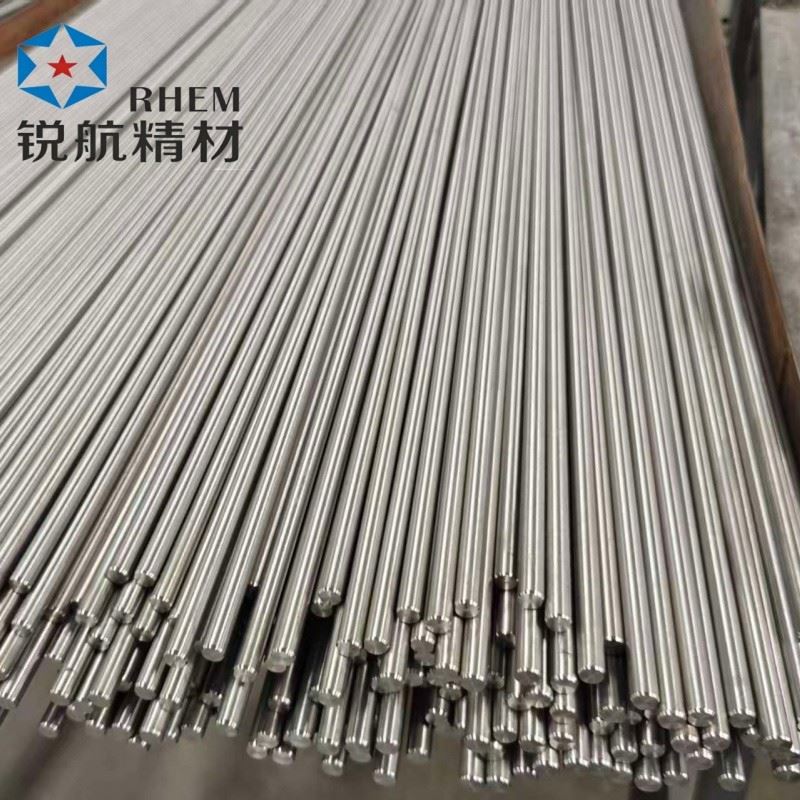

Grade 5 Titanium Bar
Grade:Grade 5/Ti-6Al-4V/UNS R56400 / TC4
Standard:ASTM B348/AMS 4928
Shape: Round bar, square bar, hex bar
Size:Custom sizes are available upon request
Surface: Pickled, centerless ground, machined, polished
Description
Technical Parameters
Products Description
Grade 5 Titanium Bar (Ti-6Al-4V / TC4) is the most popular alpha-beta titanium alloy. Grade 5 titanium bar is a wrought titanium alloy containing 6% aluminum and 4% vanadium.
It features high strength, low weight and superior corrosion resistance. Available in round, square and hex bars, complying with ASTM B348, AMS 4928. Widely used in aerospace, marine, oil & gas and high-performance automotive industries. MTC 3.1 is available.
Chemical Composition (wt%)
|
Element |
Ti |
Al |
V |
Fe |
O |
C |
N |
H |
|
Range |
Balance |
5.50 – 6.75 |
3.50 – 4.50 |
≤0.40 |
≤0.20 |
≤0.08 |
≤0.05 |
≤0.015 |
Physical Properties
|
Property |
Value |
|
Density |
4.43 g/cm³ |
|
Melting point range |
1604 – 1660 °C |
|
Modulus of Elasticity (Young's) |
~113 GPa |
|
Shear Modulus |
~44 GPa |
|
Poisson's Ratio |
0.31 |
|
Thermal Conductivity |
~7.5 W/(m·K) |
|
Coefficient of Thermal Expansion (20–100°C) |
8.6 ×10⁻⁶ /°C |
|
Electrical Resistivity |
~170 μΩ·cm |
|
Magnetic property |
Non-magnetic |
Mechanical Properties
|
Property |
Minimum Value |
|
Ultimate Tensile Strength (UTS) |
≥895 MPa |
|
0.2% Offset Yield Strength |
≥825 MPa |
|
Elongation (2 inch / 50mm gauge) |
≥10% |
|
Reduction of Area |
≥25% |
|
Hardness |
HRC 30–36 |
The Transaction Process for Grade 5 Titanium Bar
Grade 5 Titanium Bar
Inquiry & Technical Confirmation
- Customer sends inquiry: verify the grade, shape, diamete, length, tolerance, quantity, surface finish, required standards.
- Our team checks technical requirements: chemical & mechanical property requirements, test certificates, special requirements.
- Clarify shipping term: FOB / CIF / CFR / DDP, destination port, packing requirement
Quotation
- Issue formal quotation sheet including unit price, total amount, lead time, payment terms etc.
- Remarks: extra cost for cutting, grinding, special inspection, export documentation.
Proforma Invoice & Contract Signing
- Once price & terms are confirmed, issue Proforma Invoice for customer's payment arrangement
- Sign sales contract: mark material specification, inspection standard, MTC requirement, delivery schedule, claim clause
- Customer arranges deposit
Production & In-process Inspection
- Arrange raw billet, forging / rolling / peeling / grinding according to drawing & standard
- In-house inspection: dimension check, surface inspection, sampling test for chemical composition and mechanical properties
- If customer needs third-party inspection, notify inspector for on-site witness test before shipment
Final Inspection & Documentation Preparation
- Final full inspection before packing
- Prepare export documents:
Commercial Invoice
Packing List
Material Test Certificate
Certificate of Origin (if needed)
Other required documents
- Take photos and videos of finished goods and packing for customer confirmation
Packing & Loading
- Anti-rust packing: plastic film + waterproof paper + wooden case / steel pallet
- Mark shipping marks on packages: part No., quantity, gross weight, net weight, destination
- Load container or arrange air freight as agreed
Shipment & Document Handover
- Arrange shipment, get bill of lading (B/L) or air waybill
- Send copy of shipping documents to customer; hand over original documents by courier or telex release
- Track cargo status and update customer
Balance Payment & After-sales Service
- Customer pays balance payment against copy of shipping docs
- After customer receives goods: support technical consultation. If any quality problem verified, handle complaint & solution per contract.
Products Description
Real Customer Feedback
- Sales Contract Signed
We received an inquiry for Grade 5 titanium bars from Egypt. Both parties negotiated terms and signed the sales contract.
- Payment Issue
After signing the contract, we shared payment instructions. The customer completed payment with our full company name. We thank the customer for their patience and trust to finalize this deal.
- Product Feedback
The customer received Grade 5 titanium bars together with complete documentation and quality assurance certificates for aircraft maintenance. The material fully satisfies technical specifications. The customer messaged to thank us for the transaction. We sent them the quotation for the other sizes. We all expect long-term cooperation on upcoming projects.
FAQ about Grade 5 Titanium Bar
Frequently Asked Questions
Why Choose Us?
+
-
Ruihang Group is the direct manufacturer with more than 13 years experiences in titanium alloy production. The company mainly produces titanium products with the complete industry chain, including smelting,forging,straightening,rolling,surface treating,testing process.
What is Grade 5 ELI titanium bar?
+
-
Grade 5 ELI (Extra Low Interstitial) is a low-interstitial variant of Ti-6Al-4V. It has stricter limits on oxygen, nitrogen and iron, with better ductility and fracture toughness. It is mainly used for medical implant applications.
What are typical applications?
+
-
Aerospace structural components, landing gear parts, medical orthopedic implants, subsea oil & gas fittings, marine equipment, racing automotive parts, golf equipment and bicycle frames.
What is the difference between Grade 5 and Grade 2 pure titanium bar?
+
-
Grade 5 is alloyed titanium with much higher strength for load-bearing parts. Grade 2 is commercially pure titanium, softer and easier to form, mainly used for corrosion-resistant equipment without heavy load.
What about packing and delivery?
+
-
Anti-rust plastic film + waterproof paper + fumigated wooden case or steel pallet. We support sea freight, air freight and express delivery. Lead time depends on order quantity and processing requirements.
What is your MOQ?
+
-
Small trial orders are acceptable. MOQ depends on size. Some standard sizes are in stock. Custom forged bars need minimum production quantity.
Contact Us
Ruihang Group specialized in manufacturing of Titanium & Titanium Alloy Plate/Sheet, Bar, Pipe, Ring, Forging Stock & Section. The quality apply with the standard of AMS, ASTM, MIL, ISO, GB, GJB.
We are a technology and innovation enterprise that integrates R&D, production and sales into one integrated system. For any purchasing needs, feel free to contact us at email.
