Products Introduction

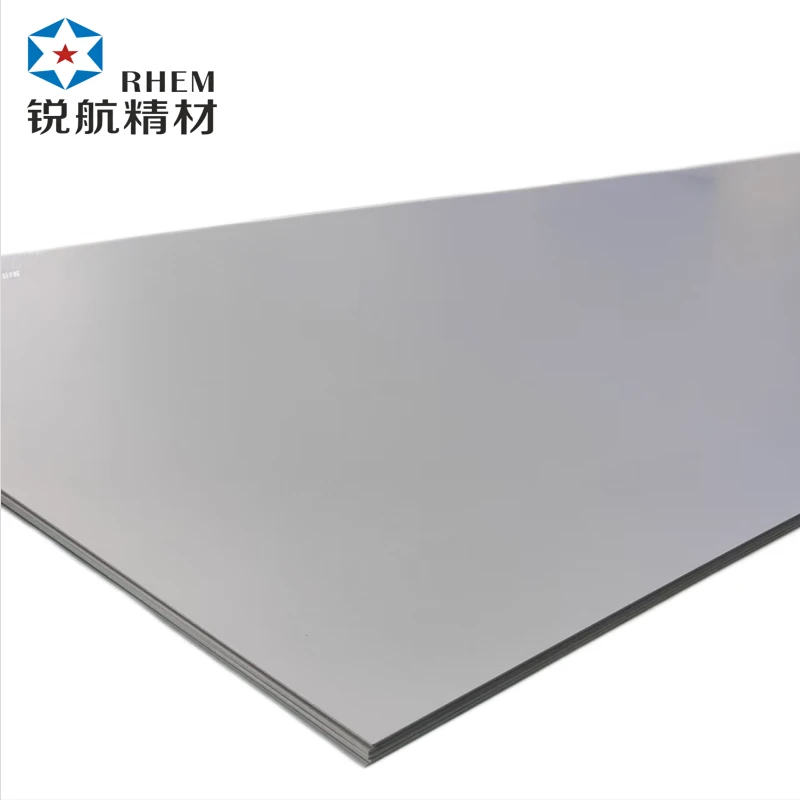

Titanium Grade 5 Plate,also called Ti-6Al-4V or TC4 in Chinese standards, is the most widely used titanium alloy plate globally. It combines exceptional strength, corrosion resistance, and biocompatibility.It is ideal for demanding applications across industries.
Mechanical & Physical Properties
|
Property |
Value |
|
Tensile Strength |
≥860 MPa |
|
Yield Strength |
≥795 MPa |
|
Elongation |
≥10–15% |
|
Modulus of Elasticity |
110 GPa |
|
Hardness |
30–35 HRC |
|
Melting Point |
1649°C |
|
Thermal Conductivity |
6.7 W/m·K |
|
Coefficient of Thermal Expansion |
8.6 x 10⁻⁶/°C |
Manufacturing Process of Titanium Grade 5 Plate
1. Raw Material Preparation
High-purity titanium sponge is mixed with Al-V master alloy per ASTM B265, homogenized and pressed into melting electrodes.
2. Vacuum Melting & Ingot Casting
Titanium is vacuum-melted via VAR or high-purity EBCHM, then cast into cylindrical ingots.
3. Ingot Forging
Heated at specific temperatures, forged for grain refinement and slab shaping, with intermediate annealing for stress relief.
4. Hot Rolling
Slabs reheated and multiple passes rolled to target thickness under controlled parameters, then descaled by shot blasting or pickling.
5. Cold Rolling
Used for thin and high-precision sheets; cold rolled with smoother surface, annealed regularly to relieve work hardening.
6. Heat Treatment
Annealing for balanced properties; solution aging boosts strength, vacuum heat treatment avoids oxidation for key parts.
7. Finishing & Quality Control
Cut to size, finish surface and conduct full quality inspections.
Grade 5 Titanium Plate compare to stainless steel
|
Property |
Grade 5 Titanium |
316L Stainless Steel |
|
Density |
4.5 g/cm³ |
7.9 g/cm³ |
|
Tensile Strength |
900-1100 MPa |
500-600 MPa |
|
Corrosion Resistance |
Excellent |
Good |
|
Biocompatibility |
Excellent |
Good |
|
Cost |
Higher |
Lower |
|
Thermal Conductivity |
Lower |
Higher |
FAQ about Titanium Grade 5 Plate
Questions for product use
Can Grade 5 Titanium Plate be welded?
A: Yes, Grade 5 Titanium Plate can be welded, but special preventions are required due to titanium's high reactivity with oxygen, nitrogen, and hydrogen at elevated temperatures.
What surface treatments are available?
- Pickling: Removes oxide layer, improves corrosion resistance
- Bright Annealing: Creates smooth, reflective surface
- Polishing: Achieves mirror finish for medical/optical applications
- Sandblasting: Creates matte, textured surface for better adhesion
- Anodizing: Forms protective oxide layer in various colors for decorative or functional purposes
- Passivation: Enhances corrosion resistance in harsh environments
How to inspect Grade 5 Titanium Plate quality?
- Verify Al, V, and impurity content
- Tensile, yield, elongation, hardness tests
- Ultrasonic testing : Detects internal defects
- Eddy current testing: Checks for surface cracks
- Visual inspection: Verifies surface quality
- Thickness, width, length, flatness measurements
- Ensures proper α-β phase distribution.
How to store Grade 5 Titanium Plate properly?
- Store in a dry, clean, well-ventilated area to prevent moisture accumulation
- Avoid contact with carbon steel
- Use plastic or wooden separators between plates to prevent scratching
- Protect from chloride-containing environments
- Handle with clean gloves to avoid oil/grease contamination
- Cover with protective film during transportation and storage.
Additional Information
-
1. Payment Terms
T/T: 30% deposit upon order confirmation; balance 70% before shipment / before B/L release.
L/C: Irrevocable sight L/C acceptable for bulk orders.
Others: Credit Card,Paypal,Western Union,Moneygram,etc
-
Lead time: to be confirmed according to the order.
Transport:
Small quantity: Express (CR express/DHL / FedEx / UPS / TNT)
Bulk: By sea / by air
-
3. Packing
Inner: Anti-rust paper + vacuum packaging + foam protection.
Outer: Plywood / wooden case.
Markings: Product grade, quantity, gross weight, net weight, country of origin, "Fragile", "Handle with care", "Keep dry".
Suitable for long-distance ocean / air transportation, shockproof, moistureproof, anti-corrosion.
