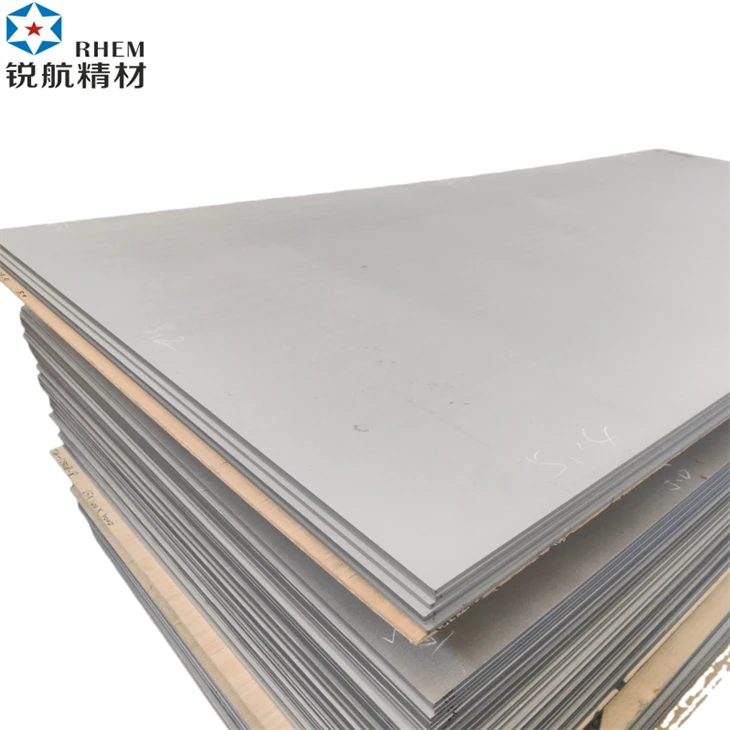

AMS 4911 Gr5 Titanium Plate
Grade: Gr5 (Ti-6Al-4V)
Standard: AMS 4911
Specification: Thickness (5.0-100mm), 1000x2000mm( or customized )
Technique:Hot Rolling
Condition: Annealed
Form: Plate, sheet, strip
Surface:Pickled and Polished
Description
Technical Parameters
Products Description
Gr5 titanium plate, also known as Ti6Al4V or TC4 titanium plate, is one of the most commonly used titanium alloy plates. AMS 4911 Gr5 (Ti-6Al-4V) Titanium Plate is the most common aerospace-grade α+β titanium alloy plate, defined by the SAE AMS 4911 standard. The common condition is annealed condition. AMS 4911 Gr5 titanium plate is the workhorse of aerospace titanium, balancing high strength, light weight, and corrosion resistance.
The sufficient stock for titanium plates are available for your reqirements. We can also supply the tailor-made products as your request. The third-party testing is offered to ensure the high-quality assurance.
Chemical Composition
| Element | Al | V | Fe (max) | O (max) | C (max) | N (max) | H (max) | Ti |
| Content | 5.5–6.75 | 3.5–4.5 | 0.3 | 0.2 | 0.08 | 0.05 | 0.015 | Balance |
Key Mechanical Properties
|
Property |
Value |
|
Tensile Strength |
895–930 MPa (130–134 ksi) |
|
Yield Strength |
825–860 MPa (120–126 ksi) |
|
Elongation |
≥ 10% |
|
Density |
~4.4 g/cm³ (≈40% lighter than steel) |
|
Service Temperature |
Up to 315°C (600°F) (retains strength) |
the difference between AMS 4911 and ASTM B265 Gr5
AMS 4911: Aerospace grade, stricter melting process (VAR/EB), full NDT inspection, tighter microstructure and impurity control.
ASTM B265: General commercial grade, looser inspection, for ordinary industrial use.
Company advantages
Core strengths
Quality control
1.We has been awarded the EN ISO 9001:2015 and EN 9100:2018 certifications.
our Advantages
3.We are specialized in R&D, production and sales in domestic.
after-sales service
2.The customized thickness Titanium plates are supplied.The after-sales service is offered to our customers anytime.
Sufficient stock
4.Different grades of Titanium plates are sufficient in stock.
Additional Information
-
1. Payment Terms
- T/T: 30% deposit upon order confirmation; balance 70% before shipment / before B/L release.
- L/C: Irrevocable sight L/C acceptable for bulk orders.
- Others: Credit Card,Paypal,Western Union,Moneygram,etc
-
2. Shipment
- Lead time: to be confirmed according to the order.
- Transport:
- Small quantity: Express (CR express/DHL / FedEx / UPS / TNT)
- Bulk: By sea / by air
-
3. Packing
- Inner: Anti-rust paper + vacuum packaging + foam protection.
- Outer: Plywood / wooden case.
- Markings: Product grade, quantity, gross weight, net weight, country of origin, "Fragile", "Handle with care", "Keep dry".
- Suitable for long-distance ocean / air transportation, shockproof, moistureproof, anti-corrosion.
FAQ about AMS 4911 Gr5 Titanium Plate
Frequently Asked Questions
Is AMS 4911 Gr5 weldable and machinable?
+
-
Yes. It has good weldability, formability and machinability with standard titanium processing parameters.
What are the main applications?
+
-
Aerospace: Aircraft structure, bulkhead, wing parts, engine components
Marine & offshore: Seawater corrosion resistant parts
Chemical processing: Reactor, heat exchanger plates
Defense & military structural components
Does AMS 4911 include ELI grade?
+
-
No. Standard AMS 4911 is regular Gr5. Gr5 ELI (extra low interstitial) follows AMS 4930, with lower oxygen and iron for medical and high-toughness use.
What surface finishes are available?
+
-
Pickled surface
Sandblasted
Polished
Hot rolled / cold rolled finish
Can you provide third-party inspection certificates?
+
-
Yes. We can supply EN 10204 3.1 or 3.2 test reports, AMS standard compliance certificate, chemical and mechanical test sheet.
