Grade 2 Pure Titanium Plates
Grade:Grade 2
Surface Finishes:Pickled,Polished,Sandblasted
Place of Origin: Baoji,Shaanxi,China
Cold rolled thin plate: 0.5 mm–6.0 mm
Hot rolled thick plate: 6 mm – 100 mm+
International Standard: ASTM B265 / ASME SB265,AMS 4902
Description
Technical Parameters
Products Description
Grade 2 (ASTM B265 GR2) is commercially pure titanium (CP Ti), with titanium content ≥99.2%. Its main impurity limits: max 0.30% Fe, max 0.25% O, low hydrogen, nitrogen and carbon. It is the most widely used unalloyed titanium grade.
GR1 has lower oxygen & iron content, softer, higher ductility but lower tensile strength. GR2 has slightly higher oxygen content, better strength balance, more cost-effective for general structural & corrosion-resistant applications.
Chemical Composition
|
Element |
Ti |
Fe |
O |
N |
C |
H |
|
Max Content (wt.%) |
Balance (≥99.2%) |
0.3 |
0.25 |
0.03 |
0.08 |
0.015 |
Physical Properties
|
Property |
Value |
|
Density |
4.51 g/cm³ (40% lighter than carbon steel, 50% lighter than stainless steel) |
|
Melting point |
~1668°C |
|
Elastic Modulus |
105–110 GPa |
|
Thermal conductivity |
~17 W/(m·K) |
|
Continuous working temperature |
≤425°C; intermittent up to 540°C |
Physical Properties
|
Property |
Value |
|
Tensile Strength (UTS) |
≥345 MPa |
|
0.2% Yield Strength |
≥275 MPa |
|
Elongation |
≥20% |
|
Vickers Hardness |
~160 HV |
|
Cold forming & welding performance |
Superior (TIG, laser welding) |

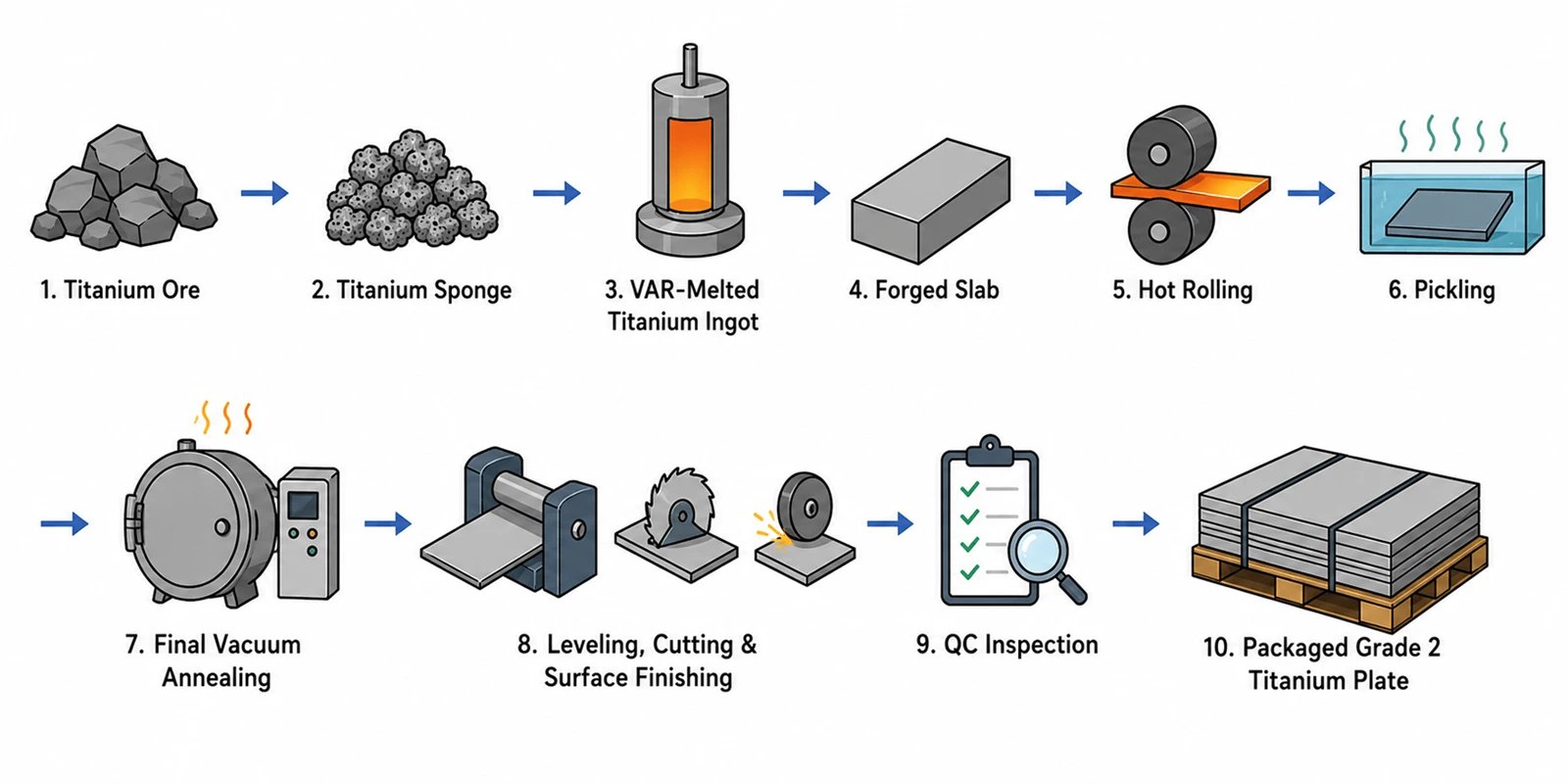

Manufacturing Process of Grade 2 Pure Titanium Plates
Sponge Production
process to make pure titanium sponge, control impurities for Grade 2.
VAR Ingot Melting
Press sponge into electrodes, double vacuum arc remelting to cast uniform titanium ingots, chemical composition inspection.
Forging into Slabs
Heat ingots, cogging forge into rectangular slabs; grind off surface oxide layers.
Hot Rolling
Reheat slabs, multi-pass hot rolling into rough plates. Shot blast & acid pickling to remove oxide scale, level flatness.
- Thick plates (20–100mm): finished after hot rolling
- Thin/medium plates: proceed to cold rolling
Cold Rolling (Thin Sheets Only)
Multi-pass cold reduction for precise thickness; vacuum intermediate annealing to relieve work hardening between passes.
Pickling
Hot scale removal, chemical pickling using HF and HNO₃ mixed acid, multi-stage water rinsing, alkali neutralization and hot air drying.
Final Vacuum Annealing
620–680℃ vacuum heat treatment to remove residual stress, stabilize mechanical properties, avoid oxygen pollution.
Finishing Treatment
Level, trim edges, cut to custom sizes; optional sandblasting, polishing, passivation for different surface finishes.
Full Quality Inspection
Chemical analysis, tensile/hardness test, ultrasonic flaw detection, dimension & surface check, issue test certificates.
Packaging
Cover with protective film, pack on moisture-proof wooden pallets for shipment.
Why Choose US
Location Advantages
We have a warehouse in Baoji, Shaanxi, China, with an annual titanium sheet storage capacity of over 100 metric tons.
High Efficiency
Adequate stock supports quick order processing and prompt delivery arrangement.
Convenient Shipment
We work with professional logistics partners, offering sea freight, land-sea combined transport and air freight services for global customers.
Authoritative Qualifications
We were awarded EN ISO 9001:2015 and EN 9100:2018 European aerospace certifications by French BV in 2025.
Strict Quality Assurance
Equipped with an in-house testing center and over 10 advanced testing devices; third-party inspection is available on demand.
Global Market Layout
All products meet international standards and are exported all over the world steadily
FAQ about Grade 2 Pure Titanium Plates
Common Problem
What is the service life of GR2 titanium in seawater?
Over 20 years without anti-corrosion coating; no rust or perforation under continuous seawater immersion.
data been dummy tndustry dard righteous
When should I choose Grade 5 (Ti-6Al-4V) instead of Grade 2?
- Pick GR5 if you need much higher tensile strength for load-bearing structural parts.
- Choose GR2 if priority is corrosion resistance, formability, low weight and lower cost.
Why is Grade 2 titanium more expensive than 304 stainless steel?
High raw material cost of titanium ore, complex smelting & rolling processes, strict vacuum processing requirements. But its ultra-long service life in corrosive media lowers overall replacement cost for long-term projects.
What industries use Grade 2 titanium plates most?
- Marine industry: seawater desalination heat exchangers, ship piping, offshore equipment
- Chemical processing: reaction vessels, heat exchangers, acid & chloride storage tanks
- Medical devices: surgical implant substrates, medical instrument shells, dental equipment
- Medical devices: surgical implant substrates, medical instrument shells, dental equipment
- Aerospace: non-load-bearing structural parts, fluid pipeline liners
- Architecture & electroplating: decorative panels, plating anode plates
- Food & pharmaceutical equipment: corrosion-resistant production liners
